Description

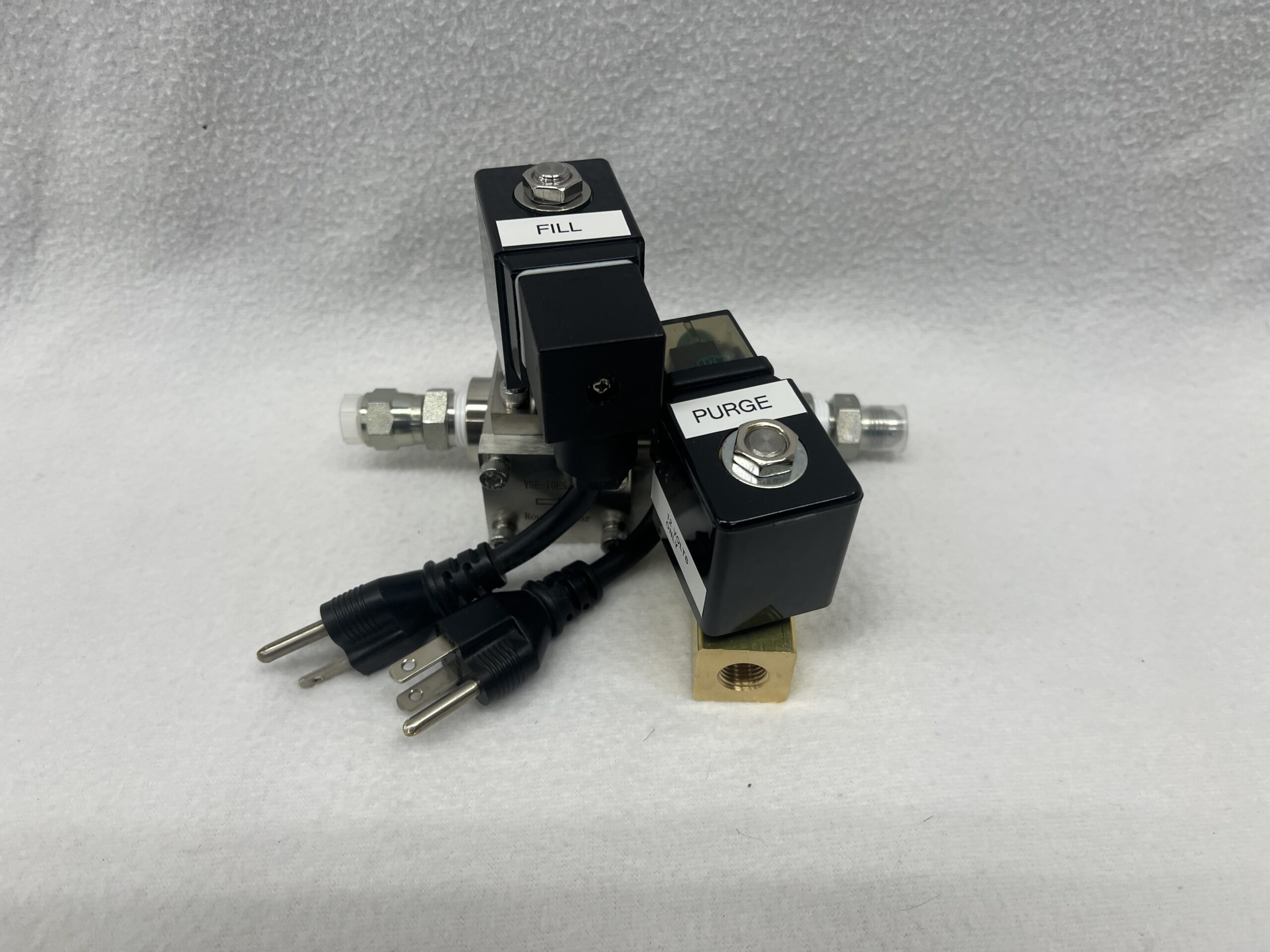

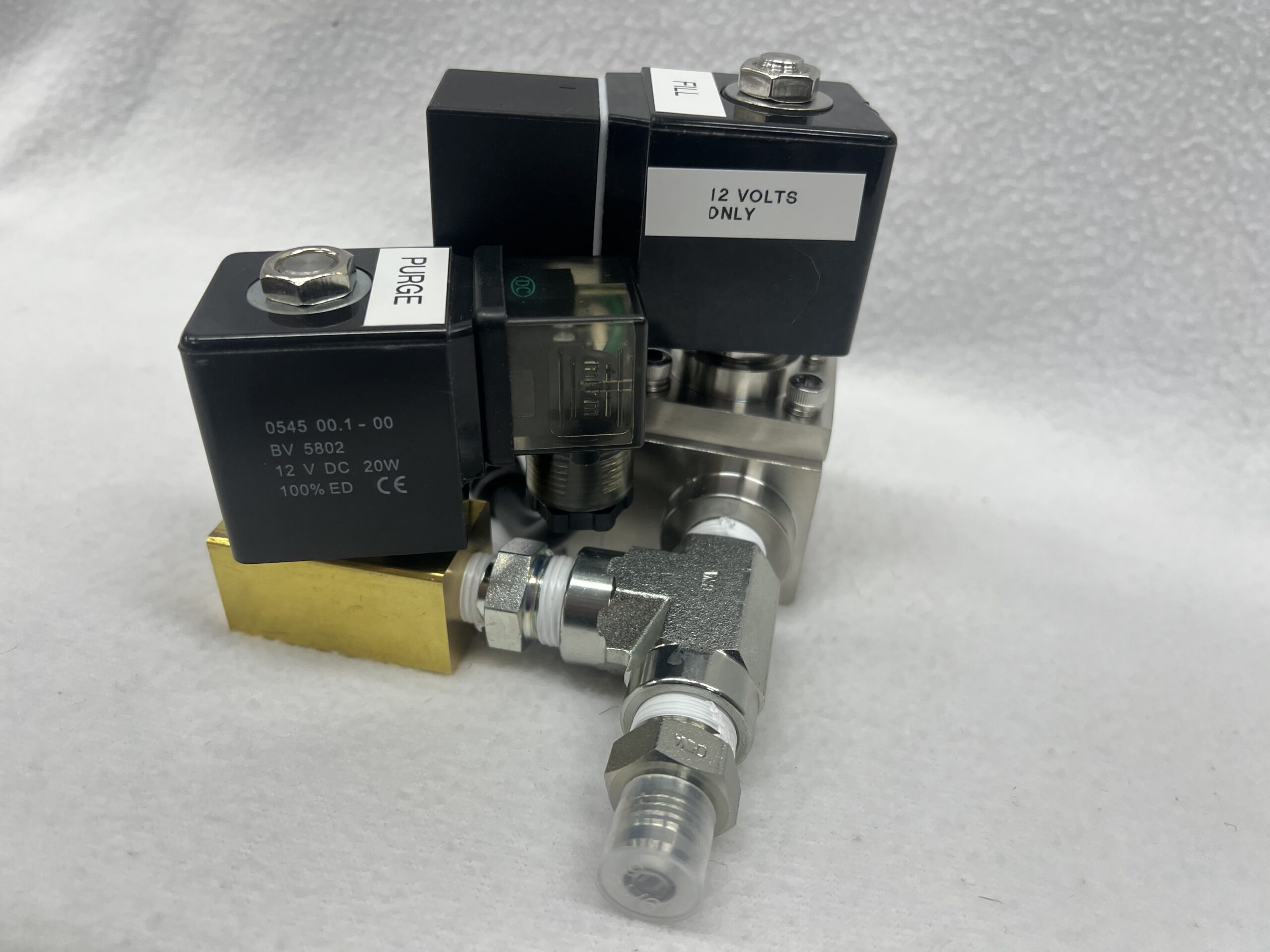

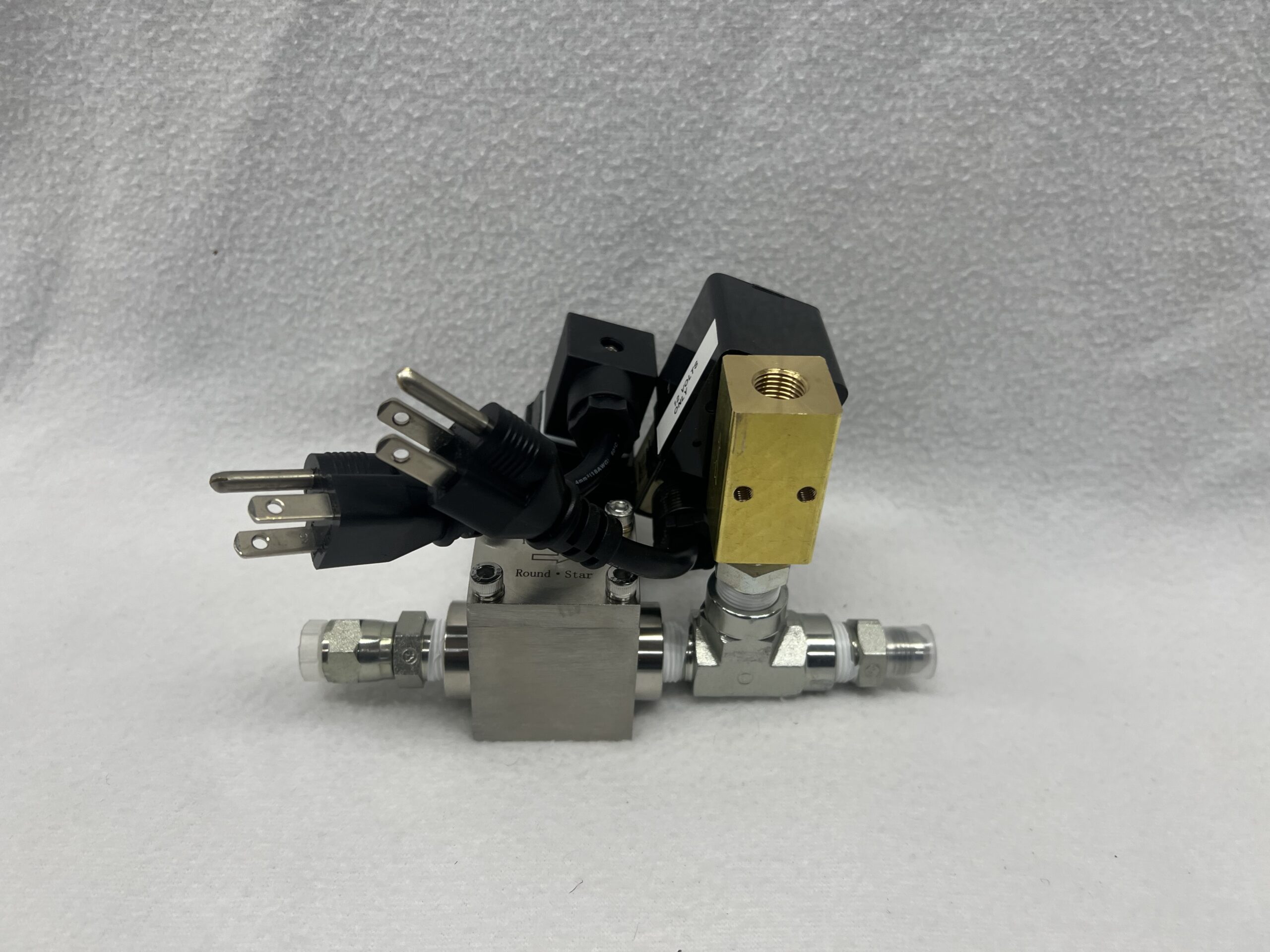

This system is designed for larger hybrid motors into the M range. It uses a 3/8 valve with a .375 orifice and a purge valve with a .0787 orifice. Note these valves are designed for continuous duty cycle and are designed for high NOS volume motors or large hybrid clusters. This manifold has a 6AN male inlet fitting allowing either connection to a CGA660 or CGA326 cylinder valve adapter. The solenoid valves have a standard 120 volt male plug for connecting via extension cord from your valves to your GSE. The outlet is a 6AN male fitting that can be connected to a 6AN braided stainless steel line. It is important to have the correct adapters to go from the 6AN to the motor fill line or lines.
| Valve size and Orifice size | |||||
| Item | Size | Thread | ID/Orifice | Area | |
| Purge | 1/4″ | 0.25 | NPT | 0.0787 | 0.0049 |
| Adpater BN | 326 | 0.125 | NPT | 0.12 | 0.011 |
| CGA | 326 | 0.83 | 14NGO-RH | 0.125 | 0.012 |
| Adapter BN-M | 326 | 0.125 | NPT | 0.14 | 0.015 |
| 3/8 valve | 3/8″ | 0.375 | NPT | 0.375 | 0.011 |
| Fast Flow NOS | 660 | .035 | 14 NGO-RH | .3110 | .076 |
| OFF | 1/2″ | 0.5 | NPT | 0.375 | 0.110 |
